českýProducts offered by FARFERR GmbH
FARFERR GmbH offeres: to slice hot-, cold rolled and galvanized coils, and cut hot-, cold rolled and galvanized sheets to the size specified by the customer. Besides, FARFERR GmbH offeres stock raw and finished materials, and to perform Just-In-Time deliveries.
Main technical parameters of raw materials:
| Product description |
Thickness (mm) |
Width (mm) |
Length (mm) |
Diameter D (mm) |
Diameter d (mm) |
Coil weight (tons) |
| Hot rolled coils | 1,2-6,0 | 670-1550 | – | 900-2100 | 500-850 | max. 30 |
| Hot rolled pickled coils | 1,5-5,0 | 670-1550 | – | 900-2100 | 500-850 | max. 30 |
| Cold rolled coils | 0,35-3,0 | 300-1500 | – | 900-1800 | 500-610 | max. 24 |
| Coated coils | 0,35-3,0 | 300-1500 | – | 900-1800 | 500-610 | max. 24 |
| Hot rolled sheets |
1,2-10,0 | 850-1500 | 2000-6000 | – | – | – |
| Cold rolled sheets |
0,4-3,5 | 300-1500 | max. 3000 | – | – | – |
| Coated sheets | 0,4-3,5 | 300-1500 | max. 3000 | – | – | – |
FARFERR GmbH offeres only produces steel products of reliable quality stored with protection, with quality certificate, meeting product requirements:
– Hot-, cold rolled and galvanized slit strips, bundled and packed according to specification.
– Hot rolled sheets cut to size as required by customer.
– Cold rolled and galvanized sheets cut to size.
Size range:
| Product description |
Thickness (mm) |
Width (mm) |
Length (mm) |
Diameter D (mm) |
Diameter d (mm) |
| Slit strips | 0,35-6,0 | 100-1500 | – | 2100 | 500 v. 600 |
| Slit strips, packed | 0,35-6,0 | 16-8001 | – | 1800 | 500 v. 600 |
| Hot rolled cut sheets | 2-10 | 80-8001 | 2000-6000 | – | – |
| Hot rolled and galvanized cut sheets | 0,4-3,5 | 35-1300 | 300-2000 | – | – |
1 minimum width is subject to thickness
Our catalog includes stock sizes and grades regularly sold FARFERR GmbH. For different sizes and grades we take your orders and fulfil them within a short time.

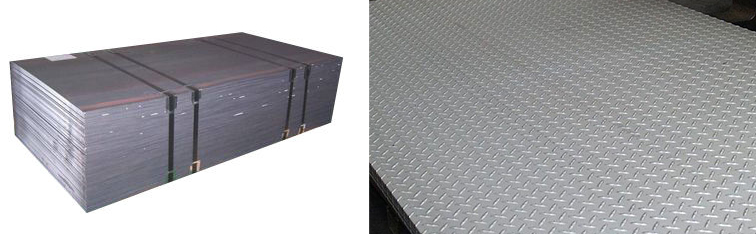

Hot rolled sheets
Commercial grades: MSZ EN 10025-94; S 235 JRG2, S 355 J2G311
| Product description | Thickness (mm) | Size (mm) |
| Sheets | 1,2-1,9 2,0-2,9 3,0-12 1,5-2,52 |
1000×2000 1000×2000, 1250×2500, 1500×3000, 1500×6000 |
| Cut sheets | 2,0-12,0 | width 803-800 mm, length 2000-6000 mm |
| Heavy plates | 8,0-180,0 | 1000×2000, 1500×3000, 1500×6000, 2000×6000 |
| Checker plates (teardrop, rhombus pattern)4 |
2,0-12,0 | 1000×2000, 1250×2500, 1500×3000, 1500×6000 |
| Coils | 1,2-12,0 1,5-5,55 |
width 800-500 mm |
| Slit, packed strips | 1,2-6,0 | width 236-1500 mm |
1 2,0 mm thickness
2 hot rolled, pickled, straightened
3 the minimum width is 15-20 times the thickness
4 Grade S235JR
5 hot rolled, pickled
6 subject to thickness
Cold rolled sheets
Commercial grades: MSZ EN 10130-94; FeP01-Am
| Product description | Thickness (mm) | Size (mm) |
| Sheets | 0,4-2,5 | 1000×2000, 1250×2500, 1500×3000 |
| Cut sheets | 0,4-2,5 | width 35-1300 mm, length 300-2000 mm |
| Coils | 0,4-3,0 | width 800-1500 mm |
| Slit, packed strips | 0,8-3,0 | width 16-15001 |
1 subject to thickness
Galvanized sheets
Commercial grades: MSZ EN 10142; DX 51D + Z 275 NAC
| Product description | Thickness (mm) | Size (mm) (mm) |
| Sheets | 0,4-1,5 | 1000×2000, 1250×2500, |
| Cut sheets | 0,4-1,5 | width 35-1300 mm, length 300-2000 mm |
| Trapezoid sheets | 0,8-1,5 | as required |
| Coils | 0,4-0,55 0,6-1,5 |
width 700-1000 mm, width 900-1250 mm |
| Slit, packed strips | 0,4-1,5 | width 16-15001 mm |
1 subject to thickness

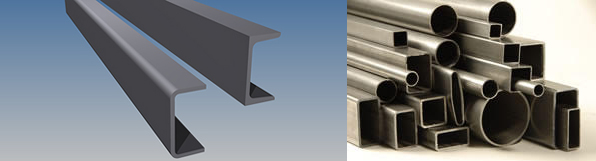

Cold formed sections
Commercial grades: MSZ EN 10025-94; S 235 JRG2
| Product description | Wall thickness (mm) | Size (mm) |
| Angles (equal) | 2,0-5,0 | 30×30-140×140 |
| Angles (unequal) | 2,0-5,0 | 40×20-180×100 |
| Channels (equal) | 1,5-5,0 | 20×20-80×80 |
| Channels (unequal) | 1,5-6,0 | 40×20-200×80 |
| C-sections | 2,0-5,0 | 28x28x8-200x75x45 |
| Z-sections | 2,0-4,0 | 40x20x42-180x60x60 |
| S-sections | 3,0-4,0 | 140x56x20-180x56x20 |
Stock length: 6000 mm
Cold formed hollow sections
Commercial grades: MSZ EN 10025-94; S 235 JRG2
| Product description | Wall thickness (mm) | Size (mm) |
| Round steel | 1,5-4,0 | Ø18-Ø133 |
| Squares | 1,0-4,5 | 15×15-100×100 |
| Rectangular sections | 1,0-4,5 | 20×10-120×80 |
Stock length: 6000 mm
Coated products (hot-dip galvanized, electrolitically galvanized, aluminized, plastic coated, tinned, etc.)
Commercial grades1: MSZ EN 10142; DX 51D + Z 275 NAC
| Product description | Thickness (mm) | Size (mm) |
| Sheets | 0,4-3,0 | 1000×2000, 1250×2500, 1500×3000 |
| Cut sheets | 0,4-3,0 | width 35-1300 length 300-2000 mm |
| Coils | 0,35-3,0 | width 1000, 1250, 1500 mm |
| Slit, packed strips | 0,35-3,0 | width 16-15002 mm |
1 other grades by separate order and agreement
2 subject to thickness
Other hollow sections
Commercial grades: MSZ EN 10025-94; S 235 JRG1, S 275 J0H1, S 355 J2G31
| Product description | Thickness (mm) | Size (mm) |
| Squares | 0,8-2,2 5,0-10,0 |
10×10-25×25 30×30-220×220 |
| Rectangular sections | 0,8-3,0 5,0-10,0 |
15×10-40×15 50×30-260×140 |
| Forged edge sections | 1,7-3,0 | 15×15-60×40 |
Stock length: 6000 mm
1 subject to thickness
Longitudinal welded tubes
Commercial grades:MSZ EN 10025-94; S 235 JRG2, DIN 17100-80; RSt 37-2
Available products: plain-cut black line pipes, plain-cut guaranteed quality pipes (gas pipes), galvanized tubes
Available sizes: 3/8″-4″
Stock length: 6000 mm
